Caiman®
Seal and Cut

Caiman® 5 Maryland

Caiman® 5 Maryland features a unique jaw design, providing uniform compression, resulting in one seal confidence. Caiman® 12.5 cm, 17 cm, 36 cm and 44 cm shaft is used for a variety of laparoscopic and open surgical applications.

Patented jaw mechanism

Caiman® 5 Maryland features a jaw engineered like no other. The lower jaw hinge causes the tip of the instrument to close first – capturing tissue and preventing slippage. This unique design then allows the upper and lower jaws to compress tissue in parallel, creating even compression forces distal to proximal.

Red represents minimum required pressure (or greater). Blue represents insufficient pressure. Minimum required pressures based on Aesculap calculated requirements. Graphs of minimum required pressure produced on a synthetic tissue model. *Data on file at Aesculap AG

Caiman 02 — Tip first closure – Avoids tissue slippage within the jaw

Long jaw tip – Enlarged vessel sealing length and improved surgical efficiency. *Data on file at Aesculap AG

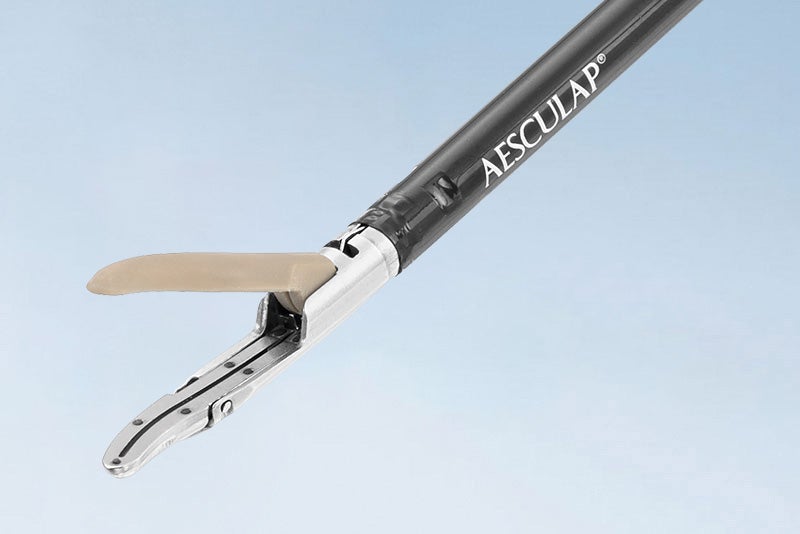

Maryland jaw design

The fine curved Maryland jaw design allows increased dissection performance and enhanced tip visualization.

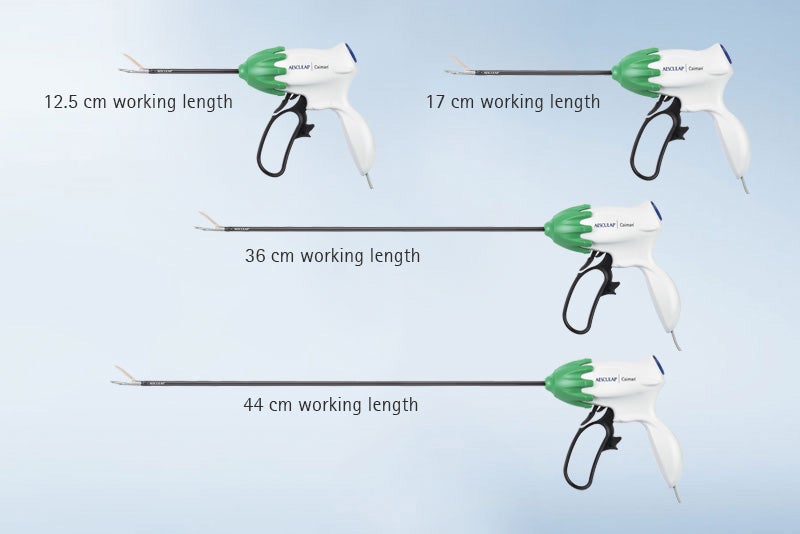

12.5 cm, 17 cm, 36 cm and 44 cm working length

Caiman® 5 Maryland is designed for a variety of laparoscopic and open surgical applications.

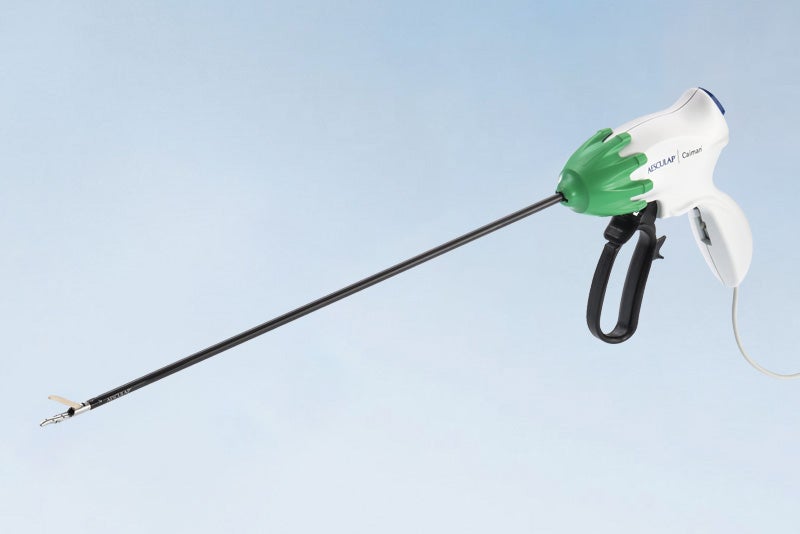

Caiman® 5 Maryland
Ordering quantity:	6 items/box, sterile single use
Working length:	12.5 cm \| 17cm \| 36 cm \| 44 cm
Shaft diameter:	5 mm
Sealing length:	21.5 mm
Cutting length:	20 mm
Jaw rotation:	360°

Related Documents

Description	Document	Link
Brochure Caiman®	link	open
Instructions for use / Technical description Caiman® 5 Maryland	link	open
