Caiman® 5 Articulating

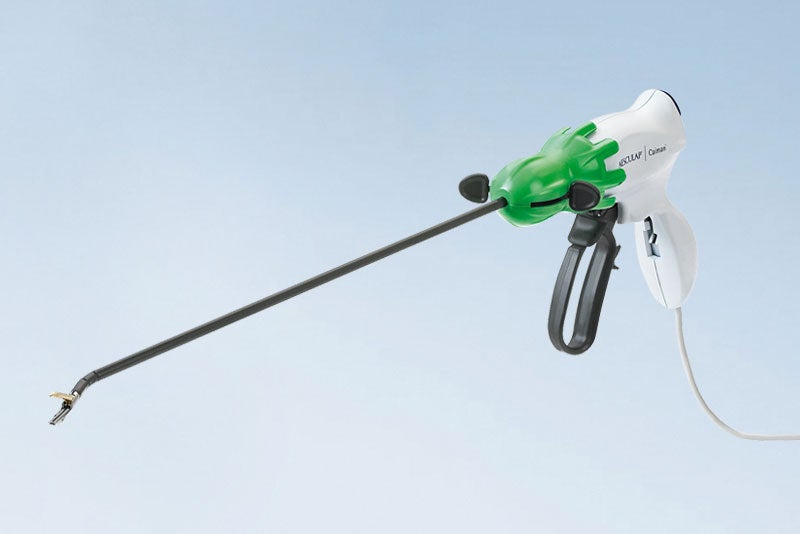

Caiman® 5 Articulating features a unique jaw design, providing uniform compression, resulting in one seal confidence. Caiman® 24 cm, 36 cm and 44 cm shaft is used for a variety of laparoscopic and open surgical applications with articulating tip.

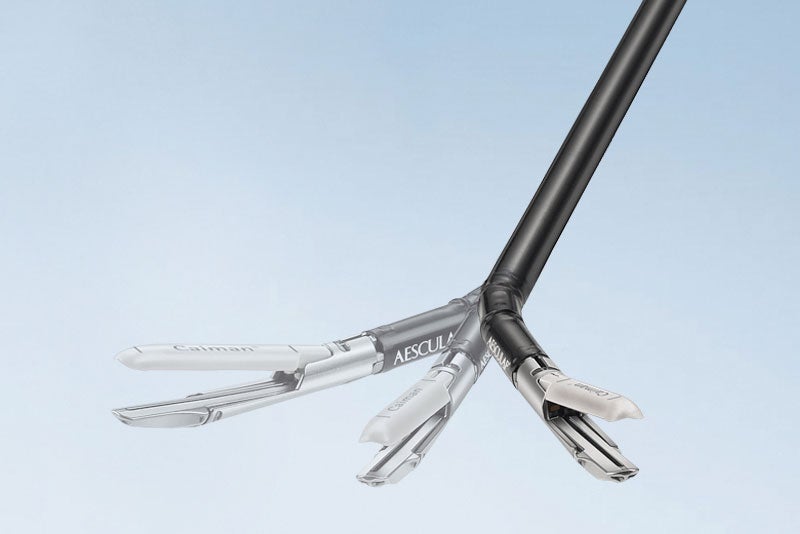

Articulating jaw tip
The Caiman® 5 Articulating features a jaw engineered like no other. The Caiman® 5 Articulating is answering your surgical needs of a bipolar Seal & Cut device giving you more motion freedom during surgery within challenging anatomy.
Motion freedom in small spaces
The jaw tip features a short articulation mechanism for easy maneuvering in small spaces.
Efficient jaw tip positioning
The articulating tip allows a side view jaw visualization to allow precise positioning.
Perpendicular sealing
Articulation allows jaw positioning in a 90° angle to increase the robustness of the sealing line, as a perpendicular approach ensures the shortest sealing line.
| Caiman® 5 Articulating | |
|---|---|
| Ordering quantity: | 6 items/box, sterile single use |

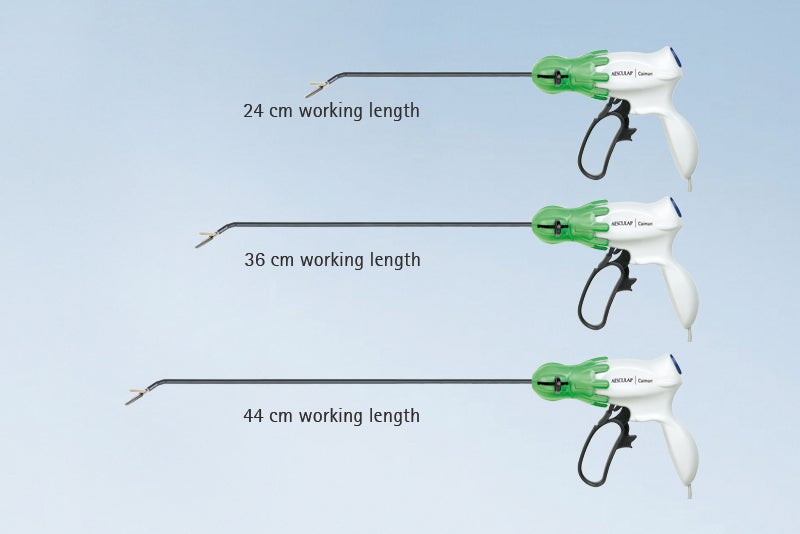

| Working length: | 24 cm | 36 cm | 44 cm |
| Shaft diameter: | 5 mm |
| Sealing length: | 26.5 mm |
| Cutting length: | 23.5 mm |
| Jaw rotation: | 360° |
| Tip articulation: | 80° |
